Shape Tools

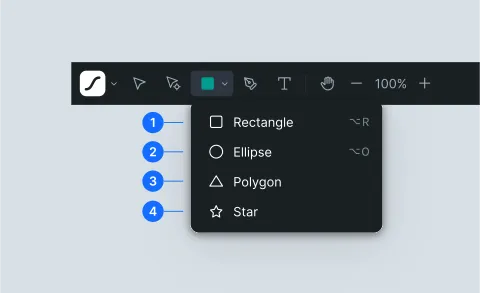

Lottie Creator provides four shape tools for quickly creating geometric shapes: Rectangle, Ellipse, Polygon, and Star. These tools create vector shapes that can be animated, styled, and modified.

1. Rectangle Tool (Alt+R) - Create squares and rectangles with optional rounded corners

2. Ellipse Tool (Alt+O) - Create circles and ellipses

3. Polygon Tool - Create regular polygons with customizable point count

4. Star Tool - Create stars with adjustable points and inner radius

1. Rectangle Tool

Create rectangles and squares with optional rounded corners.

Activating Rectangle Tool

• •Press Alt+R (or Option+R on Mac)
• •Click the rectangle icon in left sidebar
• •Or select from tool menu

Creating Rectangles

Basic Rectangle:

1. Select Rectangle Tool

2. Click and drag on canvas

3. Release to create rectangle

Perfect Square:

• •Hold Shift while dragging
• •Creates 1:1 aspect ratio
• •Size determined by drag distance

Combined Modifiers:

• •Shift + Alt - Perfect square from center

Rectangle Properties

After creating a rectangle, adjust properties in the right sidebar:

Size:

• •Width - Horizontal dimension (px)
• •Height - Vertical dimension (px)
• •Link icon to maintain aspect ratio

Corner Radius:

• •Roundness - Radius of rounded corners (0 = sharp corners)
• •Set all corners together or individually
• •Maximum roundness creates pill/capsule shape
• •Animatable property

Position & Transform:

• •Position, scale, rotation (see Transform Properties)
• •All standard transform controls available

Appearance:

• •Fill color (solid or gradient)
• •Stroke (outline with width, color, dashes)

2. Ellipse Tool

Create circles and ellipses for organic shapes.

Activating Ellipse Tool

• •Press Alt+O (or Option+O on Mac)
• •Click the ellipse/circle icon in left sidebar
• •Or select from tool menu

Creating Ellipses

Basic Ellipse:

1. Select Ellipse Tool

2. Click and drag on canvas

3. Release to create ellipse

Perfect Circle:

• •Hold Shift while dragging
• •Creates equal width and height
• •Size determined by drag distance

Ellipse Properties

Size:

• •Width - Horizontal diameter (px)
• •Height - Vertical diameter (px)
• •Link icon to maintain circular shape

Position & Transform:

• •Position, scale, rotation
• •Rotation affects gradient direction if applied

Appearance:

• •Fill color (solid or gradient)
• •Stroke (outline)
• •All standard appearance properties

3. Polygon Tool

Create regular polygons with any number of sides.

Activating Polygon Tool

• •Click the polygon icon in left sidebar
• •Or select from tool menu
• •No default keyboard shortcut (can assign in preferences)

Creating Polygons

Basic Polygon:

1. Select Polygon Tool

2. Click and drag on canvas

3. Release to create polygon

Regular Shape:

• •Polygons are always regular (equal sides and angles)
• •Drag distance determines size
• •Hold Shift to constrain orientation

Polygon Properties

Points:

• •Point Count - Number of sides (3 to 100+)
• •3 = Triangle
• •4 = Diamond
• •5 = Pentagon
• •6 = Hexagon
• •8 = Octagon
• •And so on...

Size:

• •Outer Radius - Distance from center to points
• •Inner Radius - Not applicable for regular polygons

Rotation:

• •Rotate to change orientation
• •Points can face up, down, or any direction

Appearance:

• •Fill and stroke like other shapes
• •All appearance properties available

4. Star Tool

Create stars with customizable points and inner radius.

Activating Star Tool

• •Click the star icon in left sidebar
• •Or select from tool menu
• •No default keyboard shortcut (can assign in preferences)

Creating Stars

Basic Star:

1. Select Star Tool

2. Click and drag on canvas

3. Release to create star

Constrained Star:

• •Hold Shift while dragging
• •One point faces directly up
• •Useful for consistent orientation

Star Properties

Points:

• •Point Count - Number of points (3 to 100+)

Radii:

• •Outer Radius - Distance to outer points
• •Inner Radius - Distance to inner points (between outer points)
• •

  Ratio - Inner/outer radius ratio

  • •Small ratio = sharp, thin points
  • •Large ratio = blunt, thick points

Rotation:

• •Rotate to change orientation
• •Typically one point faces up

Appearance:

• •Fill and stroke properties
• •Gradients work well with stars
• •All appearance options available

Common Shape Tool Features

Default Appearance

All new shapes start with:

• •Fill: Default color (from last used or theme)
• •Stroke: Usually none (can be enabled)
• •Opacity: 100%

Customize in property panel after creation.

Editing After Creation

Resize:

• •Use Selection Tool (V)
• •Drag corner handles
• •Shift+drag for proportional scaling

Reposition:

• •Drag with Selection Tool
• •Or use Position property in panel

Modify Properties:

• •Adjust specific shape properties (corner radius, points, etc.)
• •Change appearance (fill, stroke)
• •All editable in property panel

Converting Between Shapes

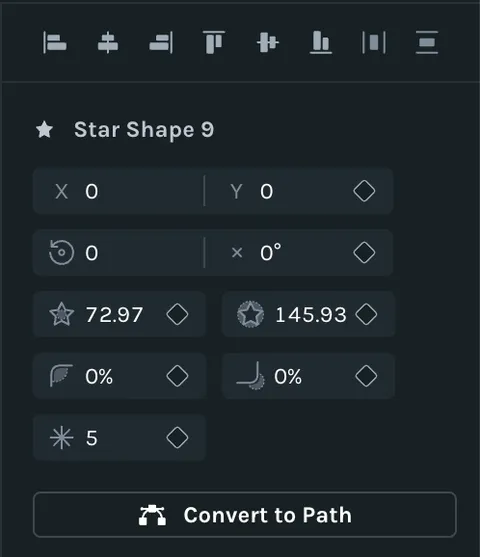

Path Conversion: Shapes can be converted to editable paths:

1. Select shape

2. Right-click → Convert to Path or click on "Convert to Path" in the property panelConvert to Path" in the property panel

3. Shape becomes bezier path

4. Edit with Pen Tool or Path Editing Tool

Note: Converting to path loses parametric properties (can't adjust corner radius, point count, etc. after conversion).

Animating Shapes

Animatable Properties

All Shapes:

• •Position, Scale, Rotation, Opacity
• •Fill color, Stroke color
• •Stroke width

Rectangle Specific:

• •Corner radius (animate rounding)
• •Width, Height (separately)

Polygon/Star Specific:

• •Point count (smooth morphing between shapes)
• •Outer radius, Inner radius (stars)

Keyboard Shortcuts

Shape tool shortcuts:

Tools:

• •Alt+R (Option+R) - Rectangle Tool
• •Alt+O (Option+O) - Ellipse Tool

Modifiers:

• •Shift + Drag - Constrain proportions
• •Alt + Drag - Draw from center
• •Shift + Alt + Drag - Both modifiers

After Creation:

• •V - Switch to Selection Tool
• •Enter - Edit shape properties
• •Delete - Remove shape
